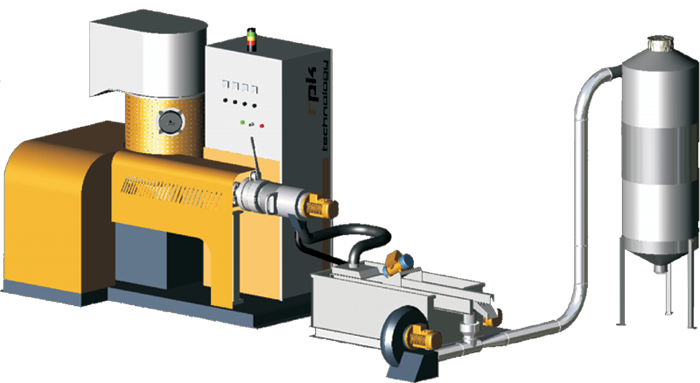

TECHNICAL DATA RECYCLINGPLANT RPK TEC 120

Material Feeding
  • Conveyor belt 3500 mm length,
  • 400 mm width
  • without metal detector
Cutter Extruder
Combination
  • Cutter ø 600 mm drive 18,5 kW
  • Screw ø 48 mm drive 22 kW
  • L/D ratio 22 D
  • Screwspeed 220 U/min
  • Output of said material 80–120 kg/hour
Filtration
  • Manuel Screenchanger screensize ø 75 mm
  • Screen surface 45 cm²
  • For screenchanging the plant must be stopped
Granulation
  • Hot die face cutting system Type HAG 120
  • Heatingpower 1800 W
  • Granulationdrive 1,5 kW
  • Granulationspeed adjustable
  • Springloaded kniveholder, simple to handle
  • Granulationwaterbath with integrated
    Plateheatexchanger
  • Volume ca. 200 lt. Virbrationscreen with
    oversizeseperator
  • Individually adjustable dryingstation
